>FJ-CH-01
The straight-through bore design can accommodate FJ-SHG-01, FJ-SHG-03, FJ-MCHG-01, FJ-MCHG-02 casing hangers. 45° -degree shoulder available in the housing and spool provides a capab小ty to hold heavy Casing Strings and test loads with safety and reliability.
>FJ-CH-02
The straight-through bore design can accommodate FJ-SHG-02casing hangers. Dual 45° -degree shoulder available in the housing and spool provides a capability to hold heavy Casing Strings with safety and reliability. The upper 45° -degree shoulder holds the pack-off pressure and test loads while the lower one provides independent support to the total casing weight.
>FJ-CH-03
The straight-through bore design.45° -degree shoulder available in the housing and spool provides a capability to hold heavy Casing Strings and test loads with safety and reliability. It has two independent outlets which can meet the requirements of field.

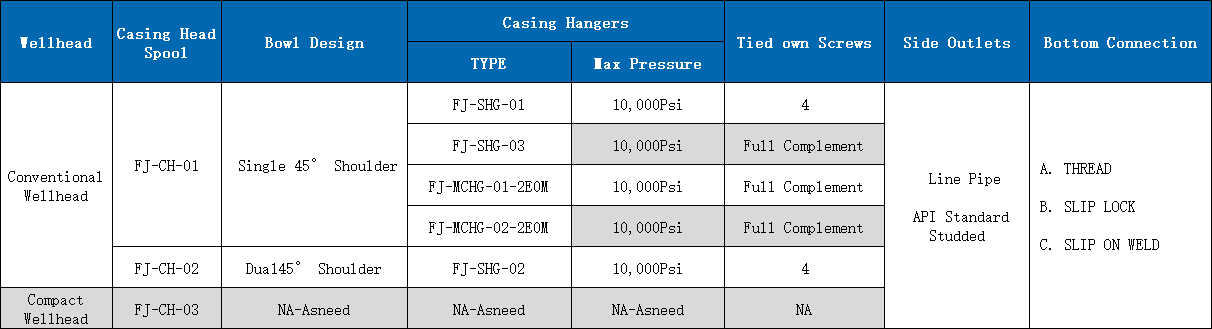

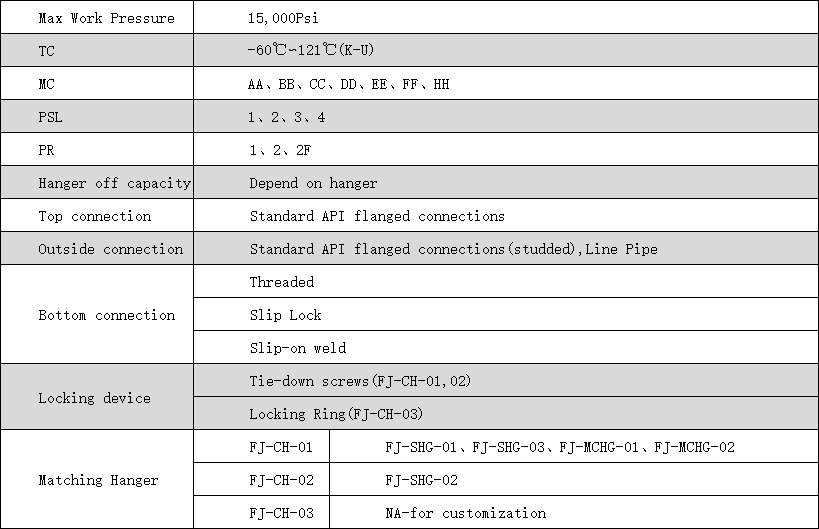

Casing head spool is the lowest connection of the wellhead equipment and is used to seal the surface casing. The casing head spool adopts multi-purpose straight-through design, tie-down screws is used for locking, bowl can accommodate test plug, wear bushing, hanger and other equipment. There are 3 bottom connections to meet customer needs. FJ-CH-01 (1 shoulder of bowl); FJ-CH-02(2 shoulder of bowl); FJ-CH-03(Compact Wellhead).
NOTE：
Order Coding Rule：
For example: Casing head: Two shoulders, bottom connection is thread.
