Safety valve

Product features：

>Type: Pneumatic Diaphragm Safety Valve (Pe Actuator)
>The pneumatic diaphragm safety valve designed to operate a " fail-close" or "fail-open" safety valve. It is ideally suited for wellhead safety valve applications, flow lines, header valves and gathering lines. It can also be used for casing relief valve and storage valve applications.

Product advantages

>It can be equipped with valve components of different structure types.
>Easy to Repair: Easily repairable by one service technician , No special tools required. no special tools are required to load spring.
>Designed for Safety：Valve body penetration is on bonnet above backseat allowing monitoring of backseat and venting well pressure trapped below packing.
>Heavy-duty compression spring insures stem backseat at low-pressure.
>Top shaft seals can be relaced without removal or adjustment of the top shaft for top diaphragm case.

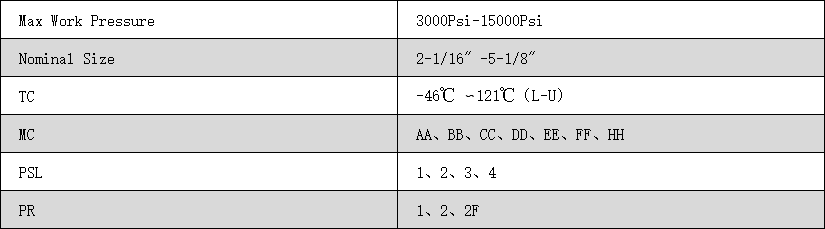

Product parameters
