>FJ-CS-01：
The straight-through bore design can accommodate with FJ-SHG-01, FJ-SHG-03, FJ-MCHG-01, FJ-MCHG-02 casing hangers. 45° -degree shoulder available in the housing and spool provides a capability to hold heavy Casing Strings and test loads with safety and reliability.
>FJ-CS-02:
The straight-through bore design can accommodate FJ-SHG-02 casing hangers. Dual 45° -degree shoulder available in the housing and spool provides a capability to hold heavy Casing Strings with safety and reliability. The upper 45° -degree shoulder holds the pack-off pressure and test loads while the lower one provides independent support to the total casing weight

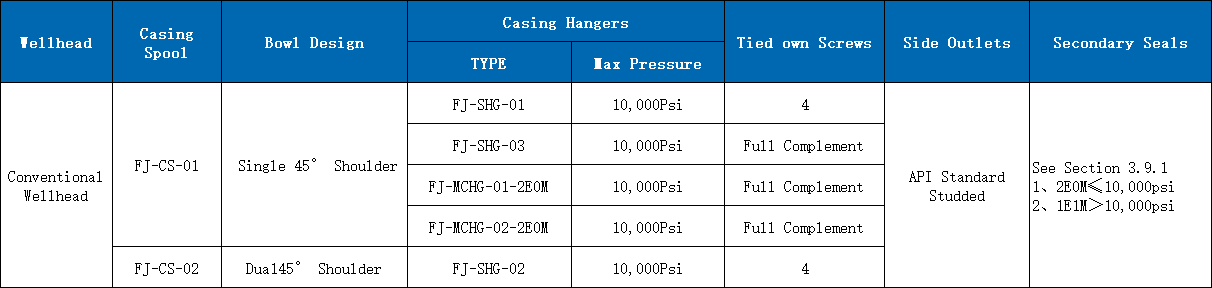

Casing spool is an equipment attached to another casing head spool that serves to suspend and seal a secondary casing string. The casing spool adopts multi-purpose straight-through design, tie-down screws is used for locking, bowl can accommodate test plug, wear bushing, hanger and other equipment.There are 2 bottom connections to meet custormer needs. FJ-CS-01(1 shoulder of bowl);FJ-CS-02(2 shoulder of bowl).
NOTE：
Order Coding Rule：
For example: Casing Spool: Two shoulders, Secondary seal is 2E0M.Secondary seal, see section3.9.1
