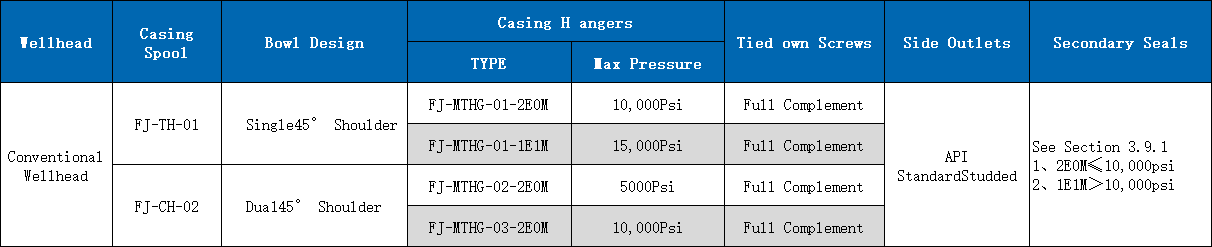

>FJ-TH-01:
The straight-through bore design can accommodate FJ-MTHG-01 tubing hangers. 45° -degree shoulder available in the housing and spool provides a capability to hold heavy Tubing Strings and test loads with safety and reliability.
>FJ-TH-02:
The straight-through bore design can accommodate FJ-MTHG-02, FJ-MTHG-03 tubing hangers. 45° -degree shoulder available in the housing and spool provides a capability to hold heavy Tubing Strings and test loads with safety and reliabiliIty. A limiting device is used to fix the direction of the hanger.

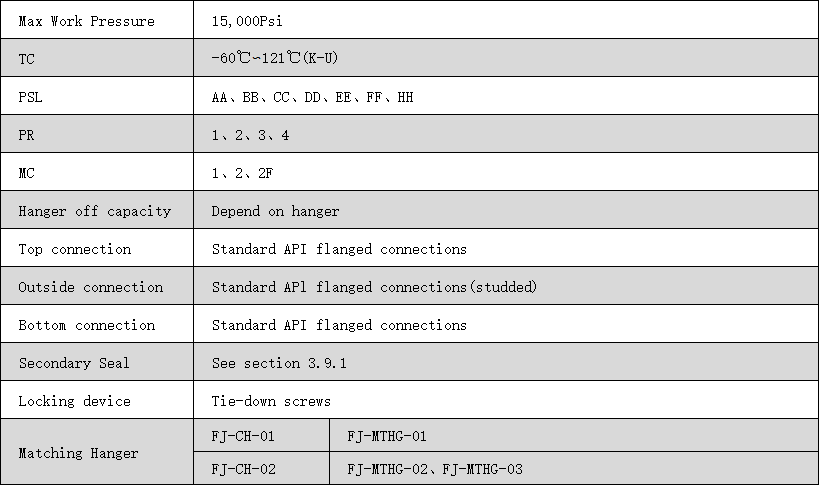

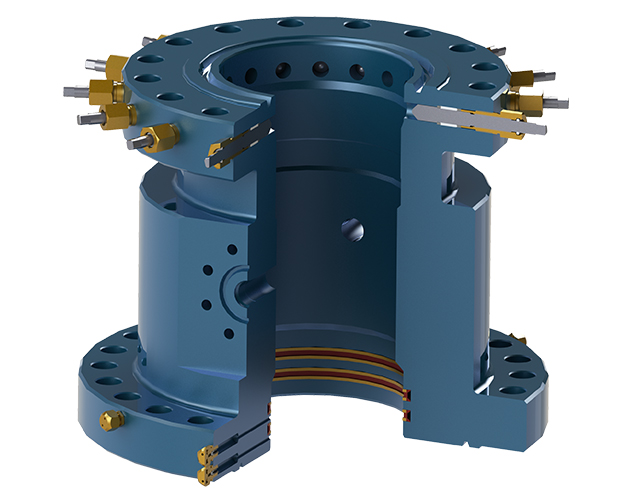

Tubing head spool is an equipment attached to the uppermost casing head or smallest casing string that serves to suspend the tubing and to seal the annular space between the tubing and casing. The tubing head spool adopts multi-purpose straight-through design, tie-down screws is used for locking, bowl can accommodate test plug, wear bushing, hanger and other equipment. There are 2 bottom connections to meet customer needs, detail see section 3.9. FJ-TH-01 (NO ESP); FJ-TH-02(Including ESP) .
NOTE：

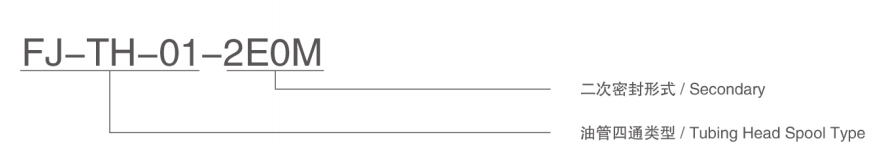

Order Coding Rule：
For example: Tubing head spool: No limiting device, Secondary seal is 2E0M.Secondary seal,see section 3.9.1
